Home > Loud Speakers > KH 210 LINE ARRAY

LINE ARRAY

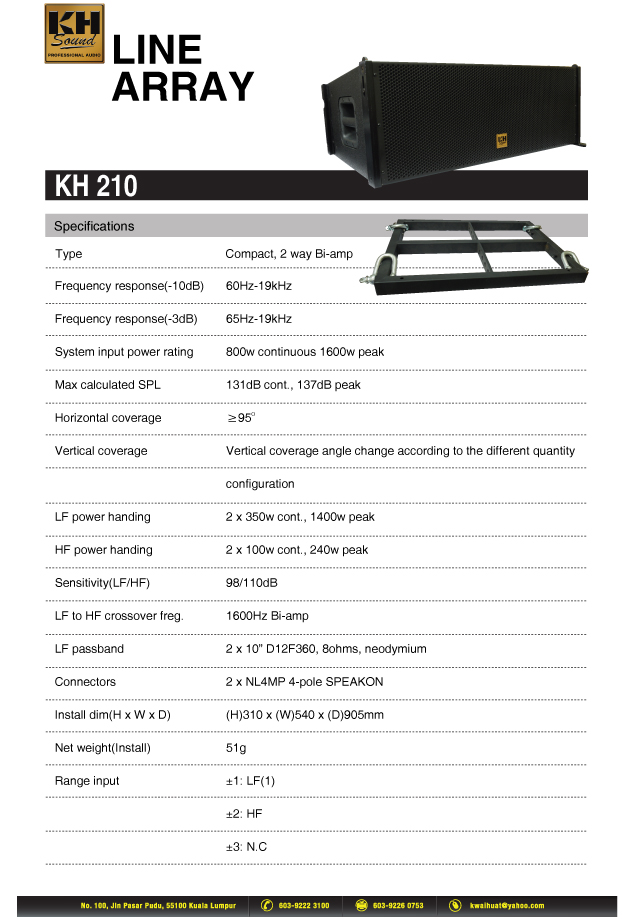

KH 210 LINE ARRAY
Specification
Frequency response(-10dB) 60Hz-19kHz
Frequency response(-3dB) 65Hz-19kHz
System input power rating 800w continuous 1600w peak
Max calculated SPL 131dB cont., 137dB peak
Horizontal coverage ≥95O
Vertical coverage Vertical coverage angle change according to the different quantity configuration
LF power handing 2 x 350w cont., 1400w peak
HF power handing 2 x 100w cont., 240w peak
Sensitivity(LF/HF) 98/110dB
LF to HF crossover freg 1600Hz Bi-amp.
LF passband 2 x 10” D12F360, 8ohms, neodymium
Connectors 2 x NL4MP 4-pole SPEAKON
Install dim(H x W x D) (H)310 x (W)540 x (D)905mm
Net weight(Install) 51g
Range Input ±1: LF(1)
±2: HF
±3: N.C
