Home > Professional Mixer > EMX 1200

PROFESSIONAL MIXER

EMX 1200

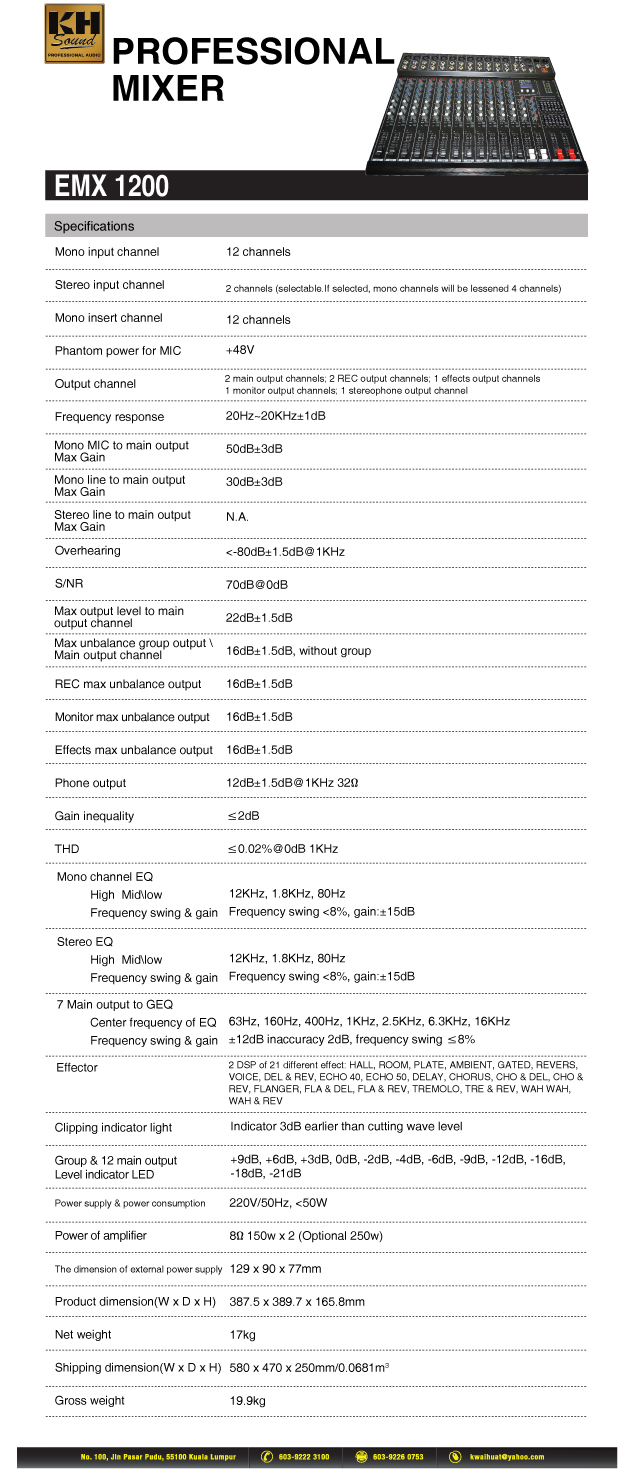

Specification
Mono input channel 12 channels
Stereo input channel 2 channels (selectable.If selected, mono channels will be lessened 4 channels)
Mono insert channel 12 channels
Phantom power for MIC +48V
Output channel 2 main output channels; 2 REC output channels; 1 effects output channels
1 monitor output channels; 1 stereophone output channel
Frequency Response 20Hz~20KHz±1dB
Mono MIC to main output max Gain 50dB±3dB
Mono line to main output max Gain 30dB±3dB
Stereo line to main output max Gain N.A.
Overhearing <-80dB±1.5dB@1KHz
S/NR 70dB@0dB
Max output level to max output channel 22dB±1.5dB
Max unbalance group output main output channel 16dB±1.5dB, without group
Effects max unbalance output 16dB±1.5dB
REC max unbalance output 16dB±1.5dB
Monitor max unbalance output 16dB±1.5dB
Earphone Output 12dB±1.5dB@1KHz 32Ω
Gain Inequality ≤2dB
THD ≤0.02%@0dB 1KHz
Mono Channel EQ High\sweep Mid\low Frequency swing & gain 12KHz, 1.8KHz, 80Hz
Frequency swing <8%, gain:±15dB
Stereo EQ High\sweep Mid\low Frequency swing & gain 12KHz, 1.8KHz, 80Hz
Frequency swing <8%, gain:±15dB
9 Main Output to GEQ Center frequency of EQ Frequency swing & gain 63Hz, 160Hz, 400Hz, 1KHz, 2.5KHz, 6.3KHz, 16KHz
±12dB inaccuracy 2dB, frequency swing ≤8%
Effector 2 DSP of 21 different effect: HALL, ROOM, PLATE, AMBIENT, GATED, REVERS, VOICE, DEL & REV, ECHO 40, ECHO 50, DELAY, CHORUS, CHO & DEL, CHO & REV, FLANGER, FLA & DEL, FLA & REV, TREMOLO, TRE & REV, WAH WAH, WAH & REV
Clipping indicator light Indicator 3dB earlier than cutting wave level
Group & 12 main output Level indicator LED +9dB, +6dB, +3dB, 0dB, -2dB, -4dB, -6dB, -9dB, -12dB,-16dB, -18dB, -21dB
Power supply & power consumption 220V/50Hz, <50W
Power of amplifier 8Ω 150w x 2 (Optional 250w)
The dimension of external power supply 129 x 90 x 77mm
Product dimension(WxDxH) 387.5 x 389.7 x 165.8mm
Net weight 17kg
Shipping dimension(WxDxH) 580 x 470 x 250mm/0.0681m3
Gross weight 19.9kg
