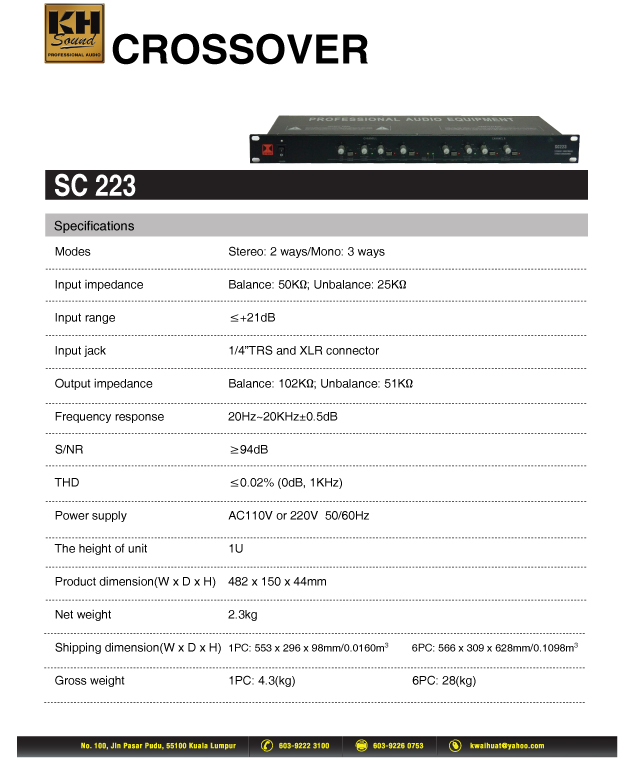

CROSSOVER

SC223
Specification
Modes Stereo: 2 ways/Mono: 3 ways
Input jack 1/4”TRS and XLR connector
Input impedance Balance: 50KΩ; Unbalance: 25KΩ
Output impedance Balance: 102KΩ; Unbalance: 51KΩ
Input range ≤+21dB
Frequency response 20Hz~20KHz±0.5dB
S/N R ≥94dB
THD ≤0.02% (0dB, 1KHz)
Power supply AC110V or 220V 50/60Hz
The Height 1U
Product dimension(W x D x H) 482 x 150 x 44mm
Net weight 2.3kg
Shipping dimension(W x D x H) 1PC: 553 x 296 x 98mm/0.0160m3
6PC: 566 x 309 x 628mm/0.1098m3
Gross weight 1PC: 4.3(kg)
6PC: 28(kg)
