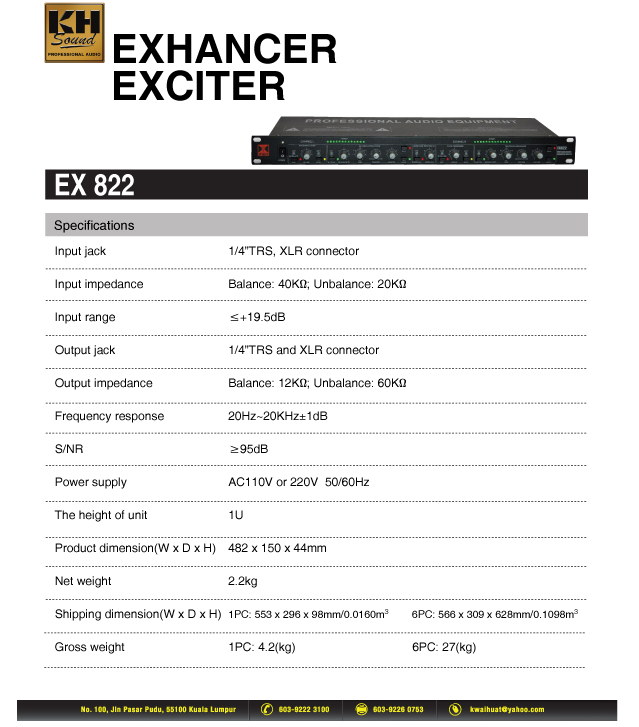

EXHANCER EXCITER

EX822
Specification
Input jack 1/4”TRS, XLR connector
Input impedance Balance: 40KΩ; Unbalance: 20KΩ
Output impedance Balance: 12KΩ; Unbalance: 60KΩ
Input range ≤+19.5dB
Output jack 1/4”TRS and XLR connector
Frequency response 20Hz~20KHz±1dB
S/N R ≥95dB
Power supply AC110V or 220V 50/60Hz
The Height 1U
Product dimension(W x D x H) 482 x 150 x 44mm
Net weight 2.2kg
Shipping dimension(W x D x H) 1PC: 553 x 296 x 98mm/0.0160m3
6PC: 566 x 309 x 628mm/0.1098m3
Gross weight 1PC: 4.2(kg)
6PC: 27(kg)
