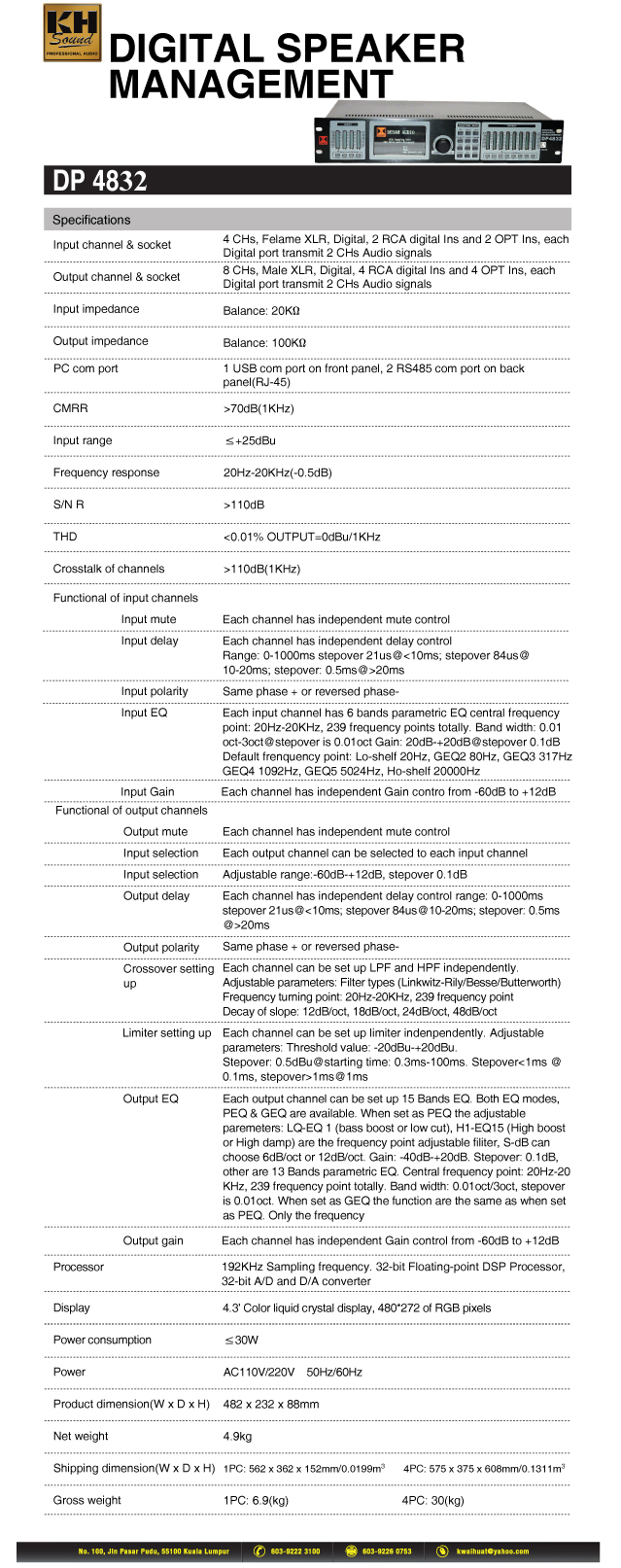

DIGITAL SPEAKER MANAGEMENT

DP 4832
Specification
Input channel & socket 4 CHs, Felame XLR, Digital, 2 RCA digital Ins and 2 OPT Ins, each Digital port transmit 2 CHs Audio signals
Output channel & socket 8 CHs, Male XLR, Digital, 4 RCA digital Ins and 4 OPT Ins, each Digital port transmit 2 CHs Audio signals
Input impedance Balance: 20KΩ
Output impedance Balance: 100KΩ
PC com port 1 USB com port on front panel, 2 RS485 com port on back panel(RJ-45)
CMRR >70dB(1KHz)
Input range ≤+25dBu
Frequency response 20Hz-20KHz(-0.5dB)
S/N R >110dB
THD <0.01% OUTPUT=0dBu/1KHz
Crosstalk of channels >110dB(1KHz)
Functional of input channels
Input mute Each channel has independent mute control
Input delay Each channel has independent delay control
Range: 0-1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover: 0.5ms@>20ms
Input polarity Same phase + or reversed phase-
Input EQ Each input channel has 6 bands parametric EQ central frequency
point: 20Hz-20KHz, 239 frequency points totally. Band width: 0.01
oct-3oct@stepover is 0.01oct Gain: 20dB-+20dB@stepover 0.1dB
Functional of output channels
Output mute Each channel has independent mute control
Output selection Each output channel can be selected to be each input channel
Output gain Adjustable range:-60dB-+12dB, stepover 0.1dB
Output delay Each channel has independent delay control Range: 0-1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover: 0.5ms@>20ms
Output polarity Same phase + or reversed phase-
Crossover Each channel can be set up LPF and HPF independently. Adjustable parameters:Filter types (Linkwitz-Rily/Besse/Butterworth)Frequency turning point: 20Hz-20KHz, 239 frequency point
Decay of slope: 12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct
Limiter Each channel can be set up limiter indenpendently. Adjustable
parameters: Threshold value: -20dBu-+20dBu. Stepover:
0.5dBu@starting time: 0.3ms-100ms. Stepover<1ms @0.1ms,stepover>1ms@1ms
Output EQ Each output channel can be set up 15 Bands EQ. Both EQ modes,PEQ & GEQ are available. When set as PEQ the adjustable paremeters: LQ-EQ 1 (bass boost or low cut), H1-EQ15 (High boost
or High damp) are the frequency point adjustable filiter, S-dB can
choose 6dB/oct or 12dB/oct. Gain: -40dB-+20dB. Stepover: 0.1dB,
other are 13 Bands parametric EQ. Central frequency point: 20Hz-20
KHz, 239 frequency point totally. Band width: 0.01oct/3oct, stepover
is 0.01oct. When set as GEQ the function are the same as when set as PEQ. Only the frequency
Gain increased Each channel has independent Gain control from -60dB to +12dB
Processor 192KHz Sampling frequency. 32-bit Floating-point DSP Processor,32-bit A/D and D/A converter
Display 4.3’ Color liquid crystal display, 480*272 of RGB pixels
Power AC110V/220V 50Hz/60Hz
Power consumption ≤30W
Product dimension(W x D x H) 482 x 232 x 88mm
Net weight 4.9kg
Shipping dimension(W x D x H) 1PC: 562 x 362 x 152mm/0.0199m3
4PC: 575 x 375 x 608mm/0.1311m3
Gross weight 1PC: 6.9(kg)
4PC: 30(kg)
