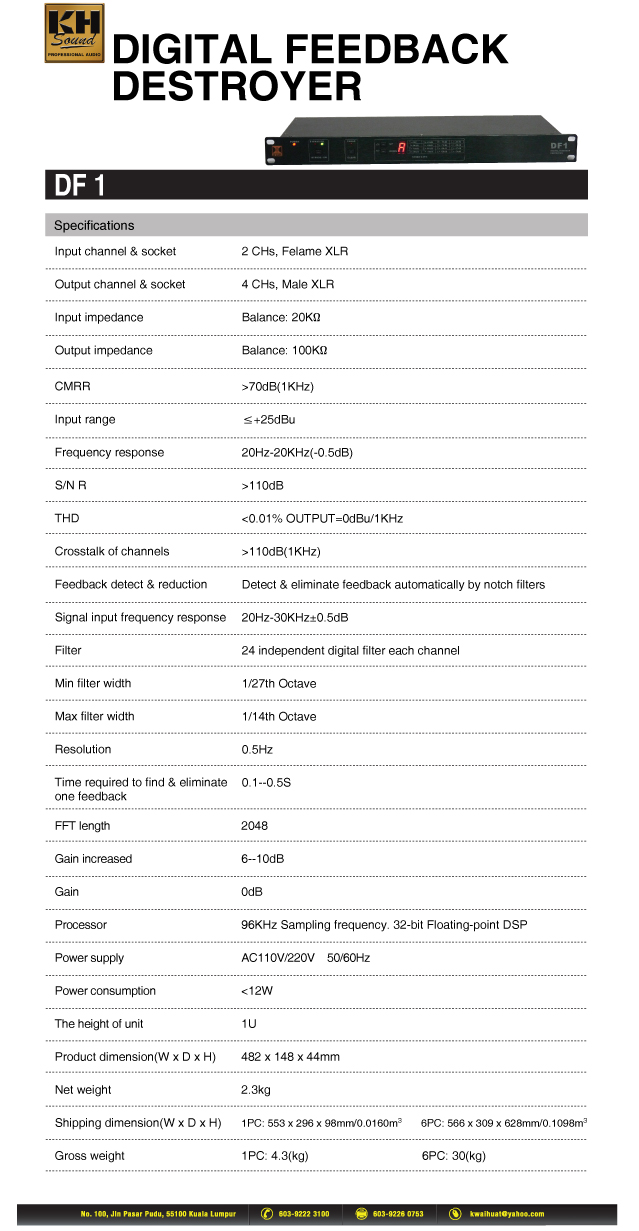

DF 1
|
|
| Specification | |
| Input channel & socket | 2 CHs, Felame XLR |
| Output channel & socket | 4 CHs, Male XLR |
| Input impedance | Balance: 20KΩ |
| Output impedance | Balance: 100KΩ |
| CMRR | >70dB(1KHz) |
| Input range | ≤+25dBu |
| Frequency response | 20Hz-20KHz(-0.5dB) |
| S/N R | >110dB |
| THD | <0.01% OUTPUT=0dBu/1KHz |
| Crosstalk of channels | >110dB(1KHz) |
| Feedback detect & reduction | Detect & eliminate feedback automatically by notch filters |
| Signal input frequency response | 20Hz-30KHz±0.5dB |
| Filter | 24 independent digital filter each channel |
| Min filter width | 1/27th Octave |
| Max filter width | 1/14th Octave |
| Resolution | 0.5Hz |
| Time required to find & eliminate one feedback | 0.1--0.5S |
| FFT length | 2048 |
| Gain increased | 6--10dB |
| Gain | 0dB |
| Processor | 96KHz Sampling frequency. 32-bit Floating-point DSP |
| Power supply | AC110V/220V 50/60Hz |
| Power consumption | <12W |
| The Height | 1U |
| Product dimension(W x D x H) | 482 x 148 x 44mm |
| Net weight | 2.3kg |
| Shipping dimension(W x D x H) |
1PC: 553 x 296 x 98mm/0.0160m3 6PC: 566 x 309 x 628mm/0.1098m3 |
| Gross weight |
1PC: 4.3(kg) 6PC: 30(kg) |
