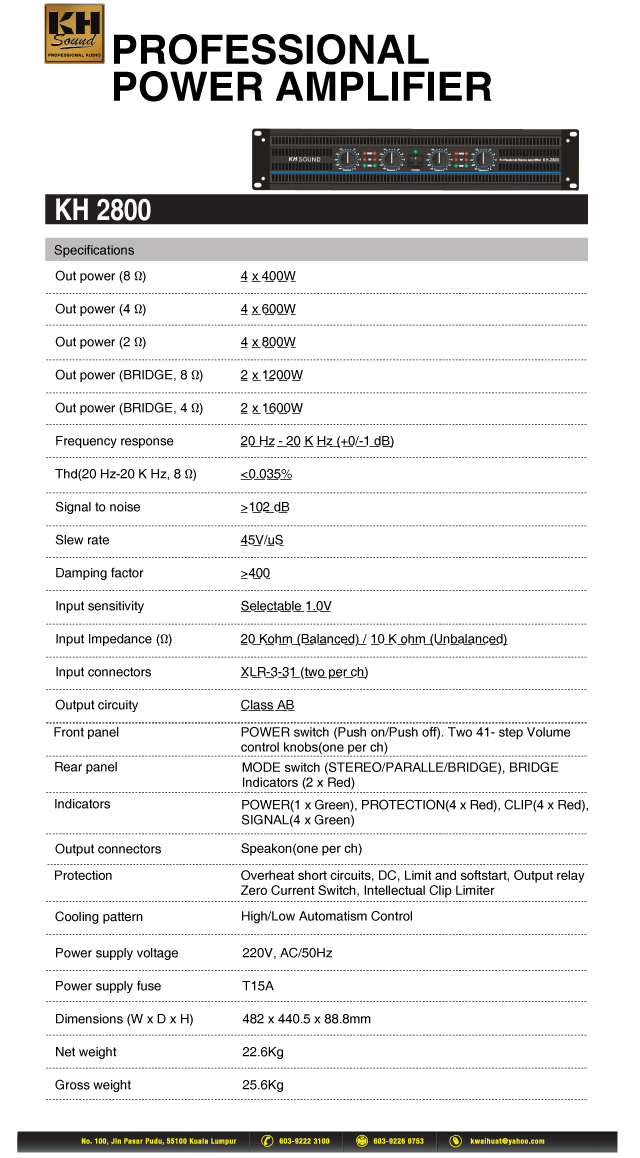

KH 2800
|
|
| Specification | |
| Out power (8 Ω) | 4 x 400W |
| Out power (4 Ω) | 4 x 600W |
| Out power (2 Ω) | 4 x 800W |
| Out power (BRIDGE, 8 Ω) | 2 x 1200W |
| Out power (BRIDGE, 4 Ω) | 2 x 1600W |
| Frequency response | 20 Hz - 20 K Hz (+0/-1 dB) |
| Thd(20 Hz-20 K Hz, 8 Ω) | <0.035% |
| Signal to noise | >102 dB |
| Slew rate | 45V/uS |
| Damping factor | >400 |
| Input sensitivity | Selectable 1.0V |
| Input Impedance (Ω) | 20 Kohm (Balanced) / 10 K ohm (Unbalanced) |
| Input connectors | XLR-3-31 (two per ch) |
| Output circuity | Class AB |
| Front panel | POWER switch (Push on/Push off). Two 41- step Volume control knobs(one per ch) |
| Rear panel | MODE switch (STEREO/PARALLE/BRIDGE), BRIDGE Indicators (2 x Red) |
| Indicators | POWER(1 x Green), PROTECTION(4 x Red), CLIP(4 x Red), SIGNAL(4 x Green) |
| Output connectors | Speakon(one per ch) |
| Protection | Overheat short circuits, DC, Limit and softstart, Output relay Zero Current Switch, Intellectual Clip Limiter |
| Cooling pattern | High/Low Automatism Control |
| Power supply voltage | 220V, AC/50Hz. |
| Power supply fuse | T15A |
| Dimensions (W x D x H) | 482 x 440.5 x 88.8mm |
| Net weight | 22.6Kg |
| Gross weight | 25.6Kg |
