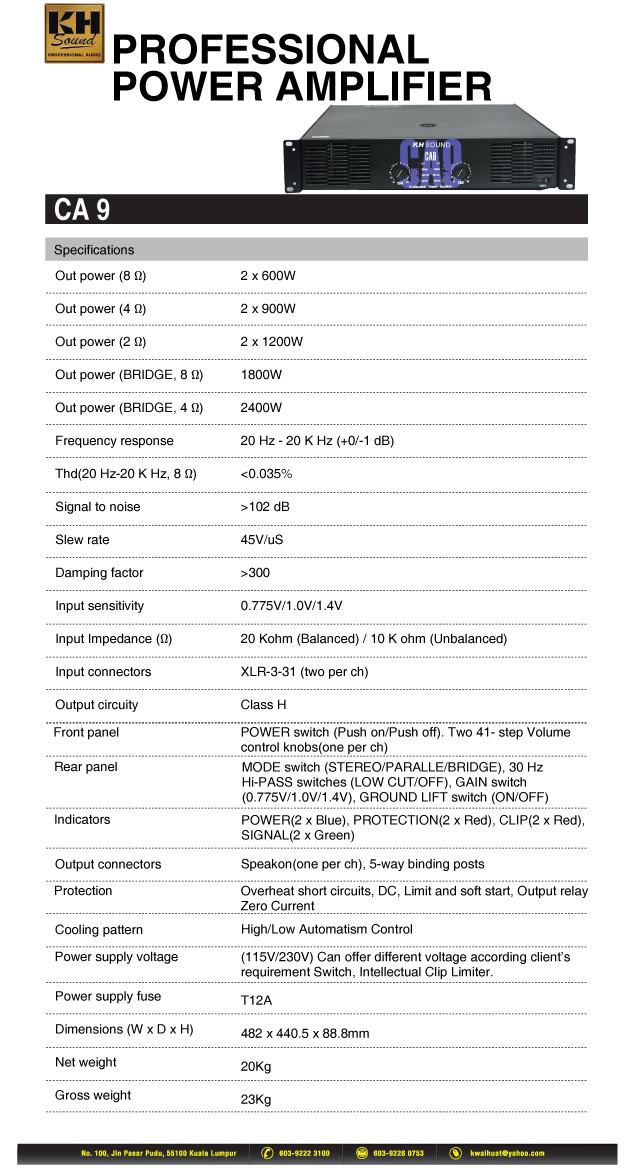

PROFESSIONAL POWER AMPLIFIER

CA 9
Specification
Out power (8 Ω) 2 x 600W
Out power (4 Ω) 2 x 900W
Out power (2 Ω) 2 x 1200W
Out power (BRIDGE, 8 Ω) 1800W
Out power (BRIDGE, 4 Ω) 2400W
Frequency response 20 Hz - 20 K Hz (+0/-1 dB)
Thd(20 Hz-20 K Hz, 8 Ω) <0.035%
Signal to noise >102 dB
Slew rate 45V/uS
Damping factor >300
Input sensitivity 0.775V/1.0V/1.4V
Input Impedance (Ω) 20 Kohm (Balanced) / 10 K ohm (Unbalanced)
Input connectors XLR-3-31 (two per ch)
Output circuity Class H
Front panel POWER switch (Push on/Push off). Two 41- step Volume control knobs(one per ch)
Rear panel MODE switch (STEREO/PARALLE/BRIDGE), 30 Hz Hi-PASS switches
(LOW CUT/OFF), GAIN switch (0.775V/1.0V/1.4V), GROUND LIFT switch (ON/OFF)
Indicators POWER(2 x Blue), PROTECTION(2 x Red), CLIP(2 x Red),SIGNAL(2 x Green)
Output connectors Speakon(one per ch), 5-way binding posts
Protection Overheat short circuits, DC, Limit and soft start, Output relay Zero Current
Cooling pattern High/Low Automatism Control
Power supply voltage (115V/230V) Can offer different voltage according client’s requirement Switch, Intellectual Clip Limiter.
Power supply fuse T12A
Dimensions (W x D x H) 482 x 440.5 x 88.8mm
Net weight 20Kg
Gross weight 23Kg
